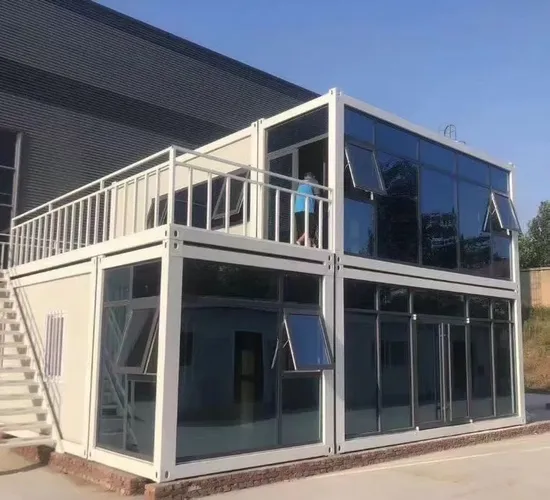

Mobile Folding Flat

Basic Info.

Model NO.	LJ-007
Fast Installation	Fast Installation
Feature	Earthquake Resistant, Easily Movable, Eco-Friendliness, Flexibly Combinable, Leak Proof, Moisture Proof, Safe, Waterproof, Wind Resistance
Material	Container
Max Floor	2
Weight	1400kg
Customized	Yes
Interior Decoration	Optional
Transport Package	Bulk Packing
Specification	5800x2400x2896mm
Origin	China
Production Capacity	5000000

Product Description

Mobile folding Flat- Pack Prefabricated Container House

Flat-pack is a type of modular products designed by using the steel frame and light-weight wall panels system. One Flat-pack consists of top frame, bottom frame, 4 posts and 16 pcs exchangeable wall panels. It can be fattened for easing transporting.

1.Product features:
1. Use container as base constuction material overthrows the traditional mode of construction and creates a new, green and integrated living concept.
2. Fast assembling & disassembling and convenient relocation and transportation.
3. Various decoration styles for your choice all house type designed by experienced designer
4. Variouse green healthy decoration materials and integrated furnishing solutions for you choice
5. Experienced building team to assist installition and provide instruction for customer reference Main structure

1	Top frame
2	Bottom frame
3	corner postes *4
4	exchangeable wall panel *16
5	windows
6	doors
7	electrical system

General Materials Specification for Flatpack Container House
Specification	LxWxH(mm)	5800x2400x2896mm (Interior size:5580x2180x2580mm)
	Roof type	Corrugrated roof tile
	Floor	≤2 floors
Parameter	Service life	10-15years
	seismic fortification intensity	8grade
	Wind resistance	120km/h
	Ground live load	280kg/sqm
	Roof live load	100kg/sqm
Structure	Column	specific:210*150mm,Q235B galvanized steel,t≈2.3mm,Power coated≥60μm
	corner fitting	specific:210150150mm,Q235B galvanized steel,Power coated≥60μm
	Roof main beam	specific:180*55mm,Q235B galvanized steel,t≈2.0mm,Power coated≥60μm
	Roof purlin	specific:80401.1mm x 7pcs ,Q235B galvanized steel
	Bottom main beam	specific:160*55mm,Q235B galvanized steel,t≈2.3mm,Power coated≥60μm
	bottom purlin	specific:n-shaped steel, t≈1.2mm ,Q235B galvanized steel
Roof	Roof cover	0.4mm steel sheet tile, white grey
	insulation	50mm glass wool ,A1 grade fire proof
	ceiling	0.3mm steel sheet tile ,white grey
Floor	Floor cover	PVC flooring
	Fool board	18mm fiber cement board
Wall	Specific	50mm sandwich panel ,0.326mm both sides steel sheet ,white,
	insulation	EPS ,water proof , 10kg density
Door	Specific(mm)	widthhigh=8402040mmx1pc
	Material	steel door with lock set
Window	Specific(mm)	widthhigh=8001100mmx2pcs
	Material	PVC,sliding ,security bar
	glass	single clear glass
Electricity	Voltage	Chinese standard electric set included ( 1 switch, 2 lights, 3sockets, DB, wire, etc. ) if there is any extra specification requirements, it may have some price raise.
	Wiring
	breaker
	Lighting
	Socket
Others	Interior trim	0.286mm steel sheet bending
	Glue	600MLX4pcs
	other accessories	screws,bolt
	Weight	1400KG/unit
	loading	8units/40HQ
	lead time	15-20days after advance payment confirmed
	Payment term	30% advance payment before prouction ,70% balance before loading .
